** SET OF 4 OVERSIZED** EMF Dodge Ram 03-09 4WD Upper and Lower Ball Joint Kit

EMF OVERSIZED BALL JOINTS ARE ALMOST EXACTLY THE SAME AS OUR REGULAR SIZE BALL JOINTS IN ALL ASPECTS - EXCEPT THEY HAVE A 5-6 THOU LARGER HOUSING THAN OUR REGULAR SIZE TO ACCOMMODATE THOSE HOLES THAT HAVE BEEN STRETCHED OUT BY FREQUENT CHANGES OR USING A KNURLED BODY BALL JOINT THAT NEED A TIGHTER FIT.

** SET OF 4**  OVERSIZED EMF Dodge Ram 03-09  4WD Upper and Lower Ball Joint Kit

Upper Ball Joints Fit:

2006-2008 Dodge Ram 1500 4WD MEGA CAB ONLY

2003-2019 Dodge Ram 2500/3500 4WD

Lower Ball Joints Fit:

2006-2008 Dodge Ram 1500 4WD MEGA CAB ONLY

2003-2009 Dodge Ram 2500/3500 4WD

OD machined 10 thou larger than factory to accommodate larger knuckle holes

Not sure if you need Regular or Oversized?  Click here to read the tech article

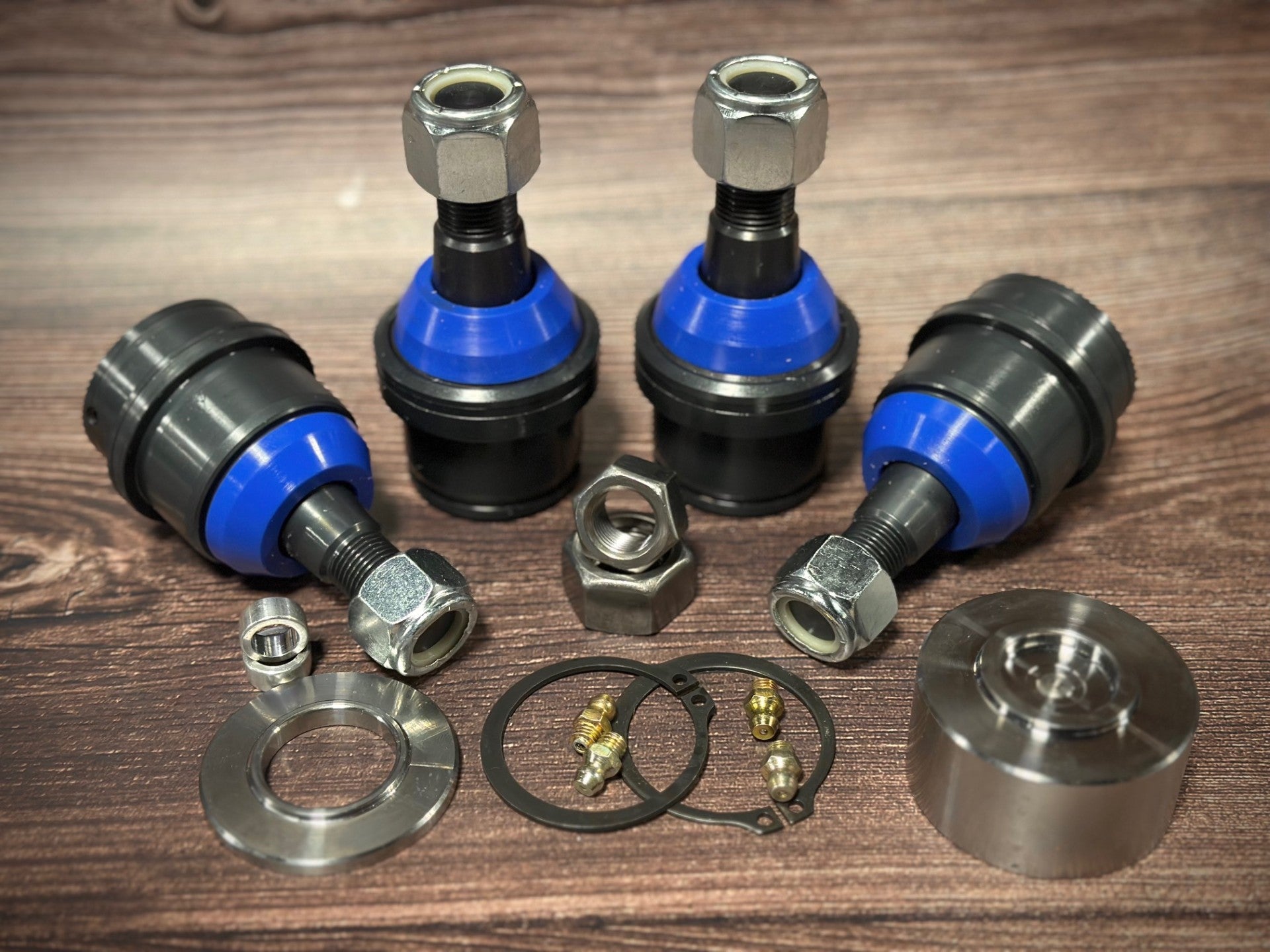

What is Included in the EMF Ball Joint Kit?

• 1 Pair of Oversized Upper Ball Joints
• 1 Pair of Oversized Lower Ball Joints
• Install Nuts
• Install Washer & Cup (To avoid damaging the cap and the ring when pressing the ball joint into the knuckle)

• 1 Pair of Dodge Intermediate Shaft Bushings (To remove any wander felt in the steering column – Mandatory to install for all Ball Joint Sets)
• Instructions & an EMF Sticker

** DUE TO SUPPLIER ISSUES, WE WILL NO LONGER BE SUPPLYING THE ADJUSTABLE SPANNER WRENCHES WITH THE KITS.  THEY ARE NOT NEEDED FOR INSTALL. IF YOU WOULD LIKE AN ADJUSTABLE SPANNER WRENCH, THE PART NUMBER IS W30781 BY PERFORMANCE TOOL **

HOUSING MEASUREMENTS:

STOCK FACTORY UPPER BALL JOINT SIZE – 1.8975”

EMF UPPER BALL JOINT REGULAR BODY SIZE – 1.9” (+.001)

EMF OVERSIZED UPPER BALL JOINT SIZE - 1.905" (+.001)

STOCK FACTORY LOWER BALL JOINT SIZE – 1.8095”

EMF LOWER BALL JOINT REGULAR BODY SIZE – 1.8115” (+.001)

EMF OVERSIZED LOWER BALL JOINT SIZE - 1.8185" (+.001)
